FORK SENSORS

Optimize Production Efficiency with TEWS Fork Sensors for Accurate and Precise Moisture and Density Measurement

TEWS Fork Sensors feature two semi-cylinders that form a microwave field between them, delivering accurate and precise Moisture Measurement in thin and lightweight materials.

Designed to handle a continuous sample flow, these sensors are highly adaptable, making them ideal for integration into production lines for real-time monitoring.

The fork gap can be adjusted between 10 mm and 25 mm, ensuring precise measurements for products of varying dimensions. This customization allows businesses to achieve optimal results based on their specific production needs.

Applications

TEWS Fork Sensors are ideal for Measuring Moisture in products that pass through the microwave field created by the sensor. They excel in monitoring a diverse array of applications, including paper, thin cupboard materials, wood, ropes, waffles, sheets, and strips.

Based on customer needs and challenges, TEWS also provides customized sensor development, offering tailored solutions.

Analyzers

TEWS sensors seamlessly connect to the Analyzer, delivering accurate, precise, reliable data readings through our powerful software.

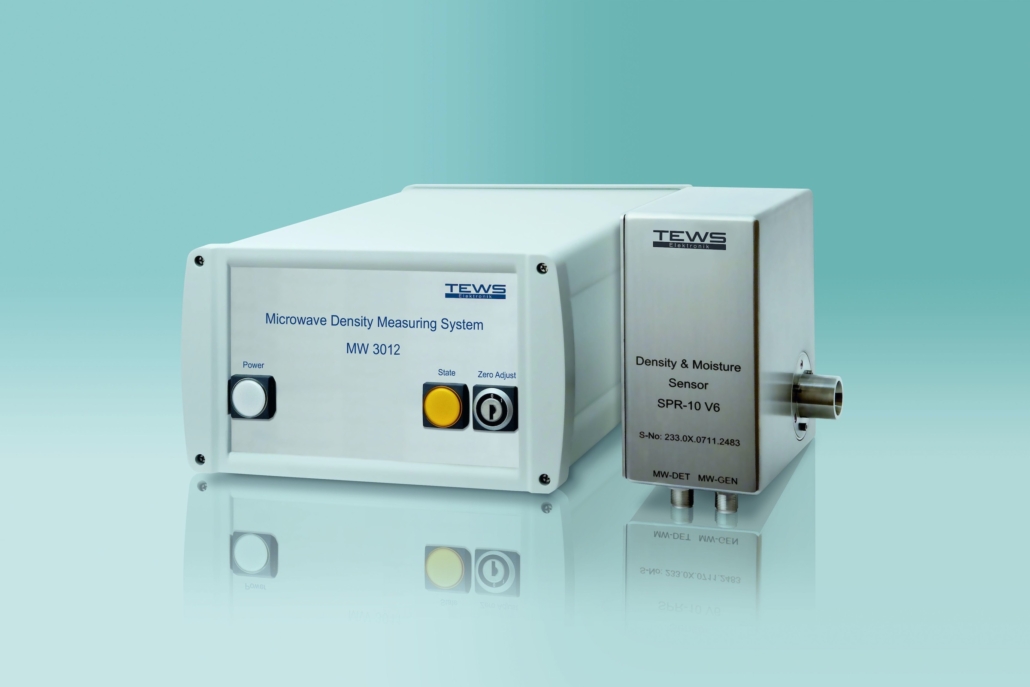

MW 3012

In industries where precision and speed are essential, the MW3012 High-Speed Measurement System is a game-changer. Designed to perform up to 40,000 readings per second, it ensures real-time monitoring of moisture and density or mass in fast-moving products—perfect for high-speed production lines such as cigarette rods, tablets, capsules, textiles, diapers and more.

KEY FEATURES

MEASUREMENT PERFORMANCE

Ultra-fast, high-precision moisture and density measurements with up to 40,000 readings per second, ±0.1% accuracy and a standard deviation better than 10 mg.
Ensures consistent, real-time data for fast-moving products, optimizing quality control and process efficiency.
Calibrated as a long-term stable tool, minimizing the need for frequent setups or recalibrations.
Developed for machine integration.

OPERATION

Versatile performance customizable for various high-speed production lines, ensuring easy integration.
Non-destructive measurement preserves the integrity of your production.
Sensor integrated into production line for continuous or batch measurement.
Ready for special tasks such as foreign body or metal detection.
Supports single-product calibration for accurate and precise, tailored measurement results specific to your application.
Customer defines access levels within the system.

CONNECTIVITY

Article and setup information can be copied and transferred between instruments for streamlined integration.
The software provides essential functionality, with detailed measurement data available via PC connection for advanced operation.
System setup possible by admin via external PC or PLC (Ether CAT).
Data storage and visualization accessible through flexible integration of external PC systems.
Data transfer is fully supported through the analog output, with fast transmission available via CAN-bus or Ethernet connection for smooth integration with your systems.

USAGE AND DESIGN

Compatible with a wide range of sensors, covering volumes from 1 ml to 2,000 ml.
Compact and robust housing designed for industrial durability.

TECHNICAL DATA PDF

MW 4270

The advanced Process Instrument for continuous, real-time Moisture and Density Measurement during production. With up to 4,000 readings per second, this system ensures accurate, precise, and reliable monitoring, enabling quick adjustments. Options for explosion protection are available. Supported by our powerful TEWS Moisture View® software.

KEY FEATURES

MEASUREMENT PERFORMANCE

Delivers fast, accurate, and precise moisture, density, and temperature results with up to 4,000 measurements per second and precision up to 0.01%.
Calibrated as a long-term stable tool, minimizing the need for frequent setups or recalibrations.
Integration with TEWS sensors ensures accurate, real-time data to optimize production process via the TEWS Moisture View® software.

OPERATION

Non-destructive measurement preserves the integrity of your production.
Sensor integrated into production line for continuous or batch measurement.
Supports up to 200 products/articles for tailored performance.
Stores up to 60,000 measurements on the device, with unlimited storage available on an external server.
System setup by admin via integrated display.
Intuitive Human Machine Interface enabling detailed data visualization and in-depth analysis via the customer’s system.
Configurable user interface allows for expert operation as well as routine handling.

CONNECTIVITY

Article and setup information can be copied and transferred between instruments for streamlined integration.
Support via remote access possible.
Supports Ethernet, analog inputs/outputs, digital I/O, and Modbus TCP with options for all field buses such as Profinet, Profibus, etc.

USAGE AND DESIGN

Designed with a robust housing for industrial durability.
Compatible with a wide range of sensors covering volumes from 1 ml to 2.000 ml.

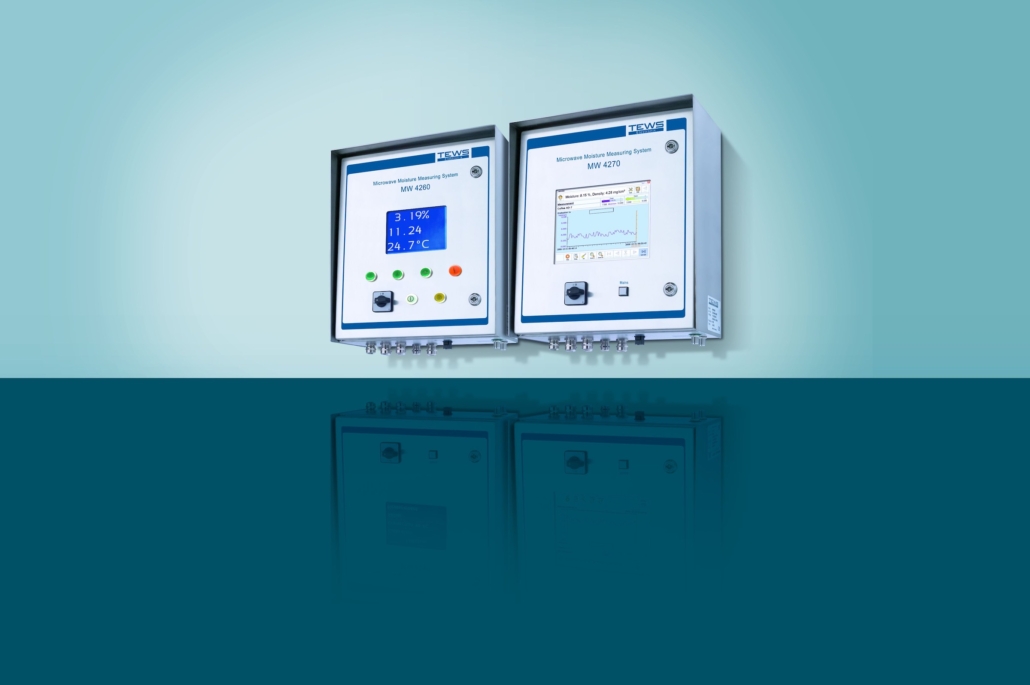

MW 4270 includes a 10.4” touchscreen. There are two additional options available: MW 4260 offers a 5” LCD screen, MW4200 offers a single-line LED display for sensor setups.
MW4260 is also available in explosion-protected versions or with AC for installation in high temperature environments up to 55°C.

TECHNICAL DATA PDF

INSTALLATION PDF
