LABORATORY INSTRUMENTS
Versatile Applications
- Measure moisture, density/mass, or both independently of each other tailored to your needs.
- The wide range of sensors available for lab systems adapt from 1 ml to 2,000 ml, to match your product.
Boost Your Laboratory Workflow
TEWS Laboratory Instruments redefine efficiency in the lab or at-line, ensuring your processes run smoothly with technology designed for ease of use and superior performance.
Explore how TEWS stands out against other methods.

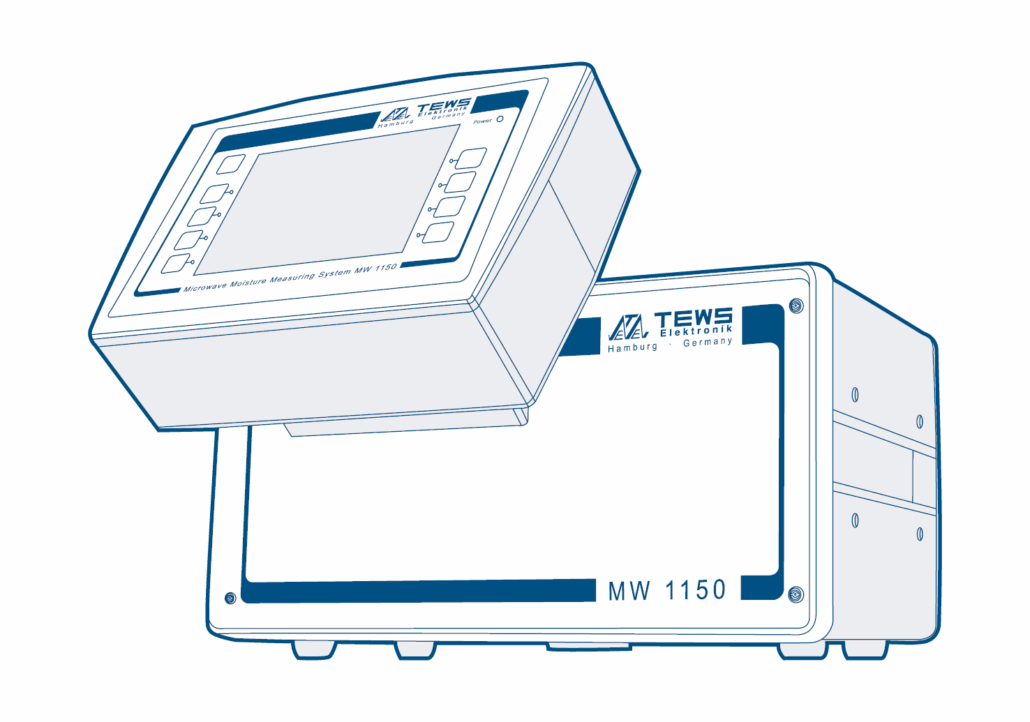

MW 1150
The Perfect Lab System for Accurate, Precise, and Reliable Routine Measurement.
MW 1150 is a compact Microwave Moisture Measurement system of convenient use; ideal for routine laboratory or at-line use.
MEASUREMENT PERFORMANCE
- Fast, accurate, and precise moisture measurement tailored to your application.
- Performs 100 measurements per second with up to 0.1% precision, optimizing workflow efficiency.
- Calibration as a long-term stable tool minimizing the need for frequent setups or recalibrations.
- Designed for routine use in both laboratory and at-line production environments.
OPERATION
- Non-destructive testing preserves sample integrity for further use.
- Sample can be placed directly into the sensor or use sample cups.
- Stores up to 250 measured values for up to 25 different products.
- Simple, user-friendly Human Machine Interface for intuitive operation.
- System setup or calibrations are performed by an admin via an external PC.
CONNECTIVITY
- Article and setup information can be copied and transferred between instruments for streamlined integration.
- USB port for seamless data export and further processing on external PCs.
- Printer port enables instant documentation of results for compliance and record-keeping.
USAGE AND DESIGN
- Energy-efficient design ensures low power consumption per measurement, supporting sustainability.
- Compact housing with an integrated sensor—no cables, easy to operate.
- Compatible with a wide range of sensors (1 ml to 2000 ml) for diverse applications.
- 5.7-inch LCD monitor and customizable sensor options for adaptability across different product requirements.

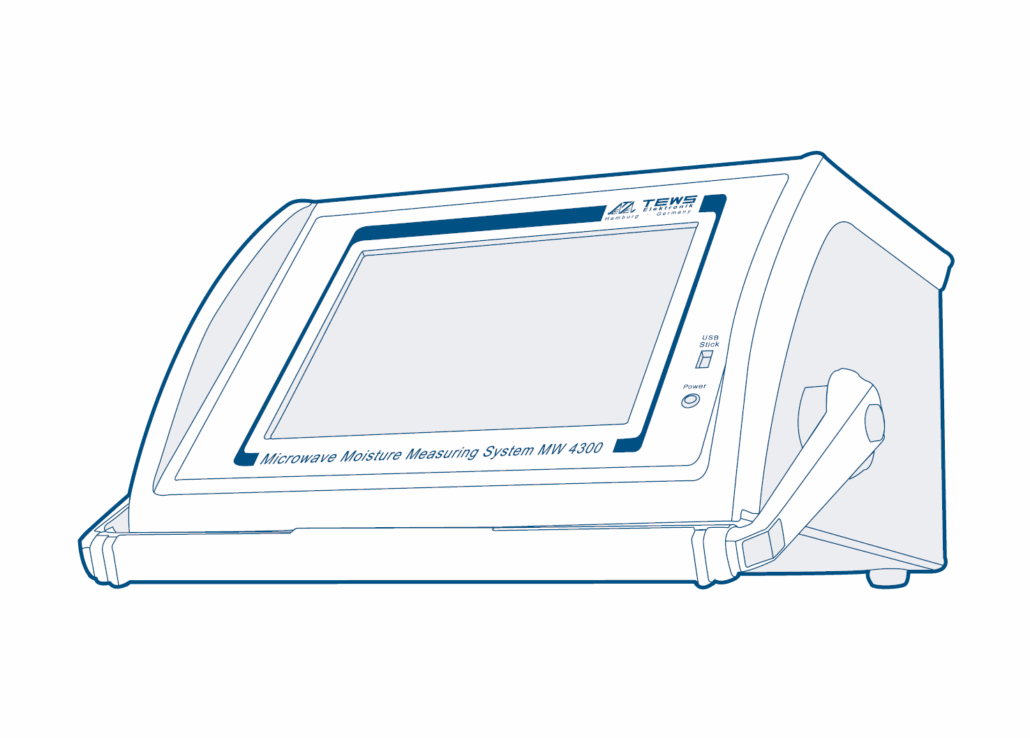

MW 4300
The High-Performing Lab Unit for Efficient, Accurate, and Precise Measurements in Quality Control
MW 4300 is the lab unit offering high flexibility for advanced laboratory analysis in Moisture and Density Measurements.
MEASUREMENT PERFORMANCE
- Delivers instant results without the need for sample preparation.
- Fast, accurate, and precise moisture and density results with up to 4,000 measurements per second.
- High precision of up to 0.01% for reliable quality control.
- Calibration as a long-term stable tool minimizing the need for frequent setups or recalibrations.
OPERATION
- Non-destructive testing preserves the integrity of your samples.
- Samples can be placed directly into the sensor or sample cups.
- Supports up to 200 product setting system for tailored performance across different applications.
- Stores up to 60,000 measured values, including date, time, and additional parameters for complete traceability.
- 10.4” integrated touchscreen for intuitive operation and seamless user experience.
- Human Machine Interface for in-depth data analysis.
- Set-up of the system by admin via integrated display.
CONNECTIVITY
- Enables real-time data transfer and storage for optimized process monitoring.
- Article and setup information can be copied and transferred between instruments for streamlined integration.
- TEWS Moisture View software enables in-depth data analysis and expansion of measured value memory.
- Automatic data backups and encrypted files ensure secure and reliable operation.
- Printer port enables instant documentation of results, for compliance and record-keeping.
- Multiple interfaces available: RS 232, Ethernet, USB, and analog for seamless integration with PLCs, servers, or PCs.
- Supports audit trails for compliance and traceability.
USAGE AND DESIGN
- Separate housings for analyzer and sensor enable quick sensor changes and simultaneous connection of two interchangeable sensors, ensuring maximum flexibility for diverse measurement needs (Multiplex-Option).
- Compatible with a wide range of sensors (1 ml to 2000 ml) for diverse applications.
- Designed for seamless integration into production environments, ensuring efficiency and adaptability.
- Option: MW 4310 is available with an external monitor (VGA), a keyboard and a mouse.

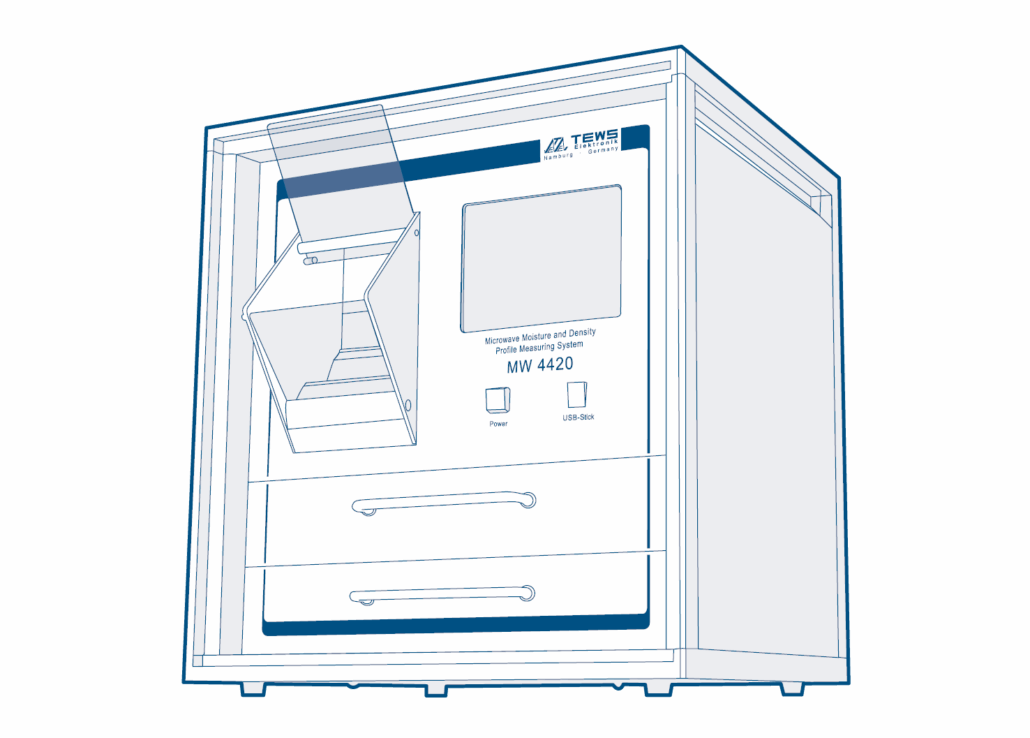

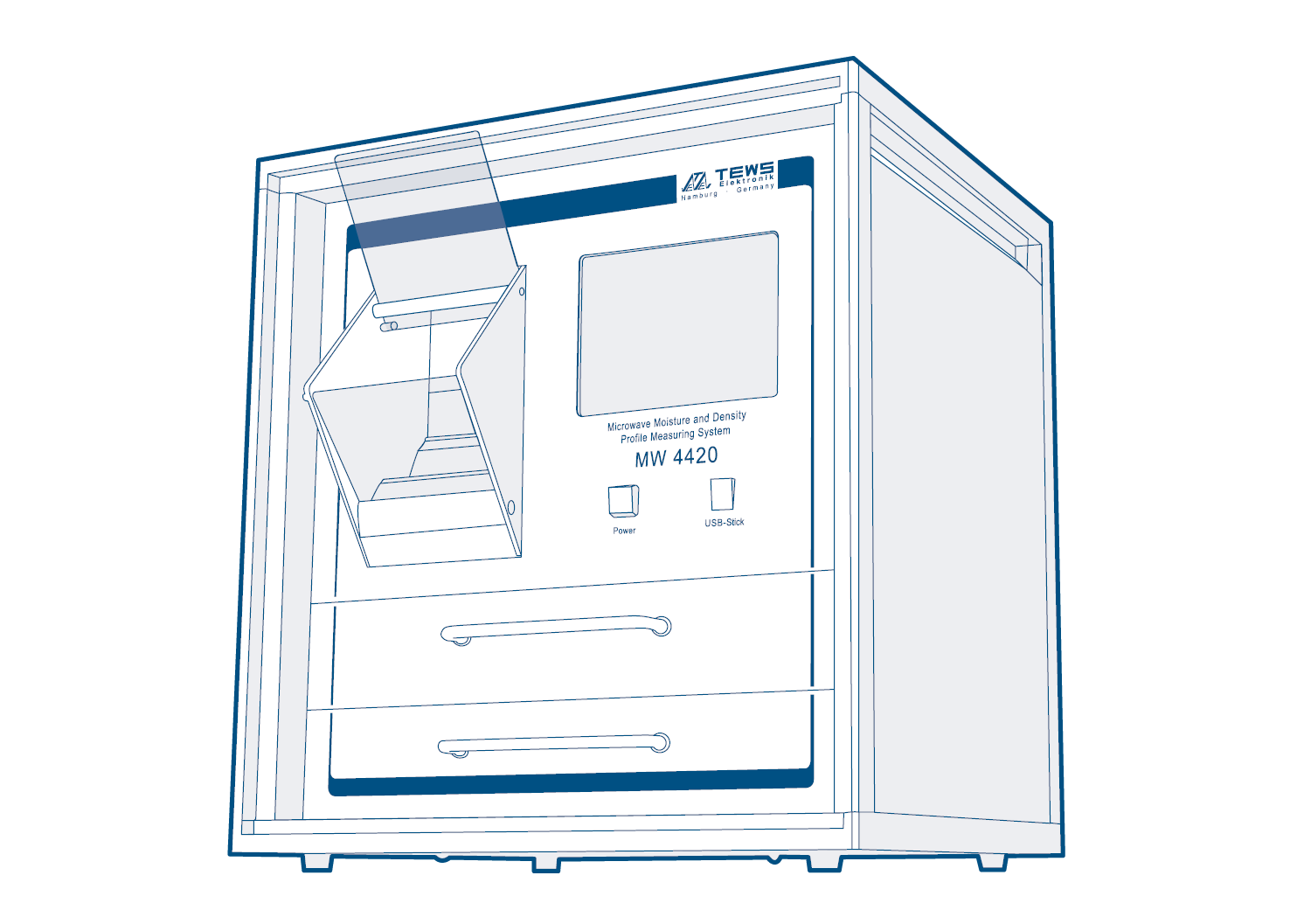

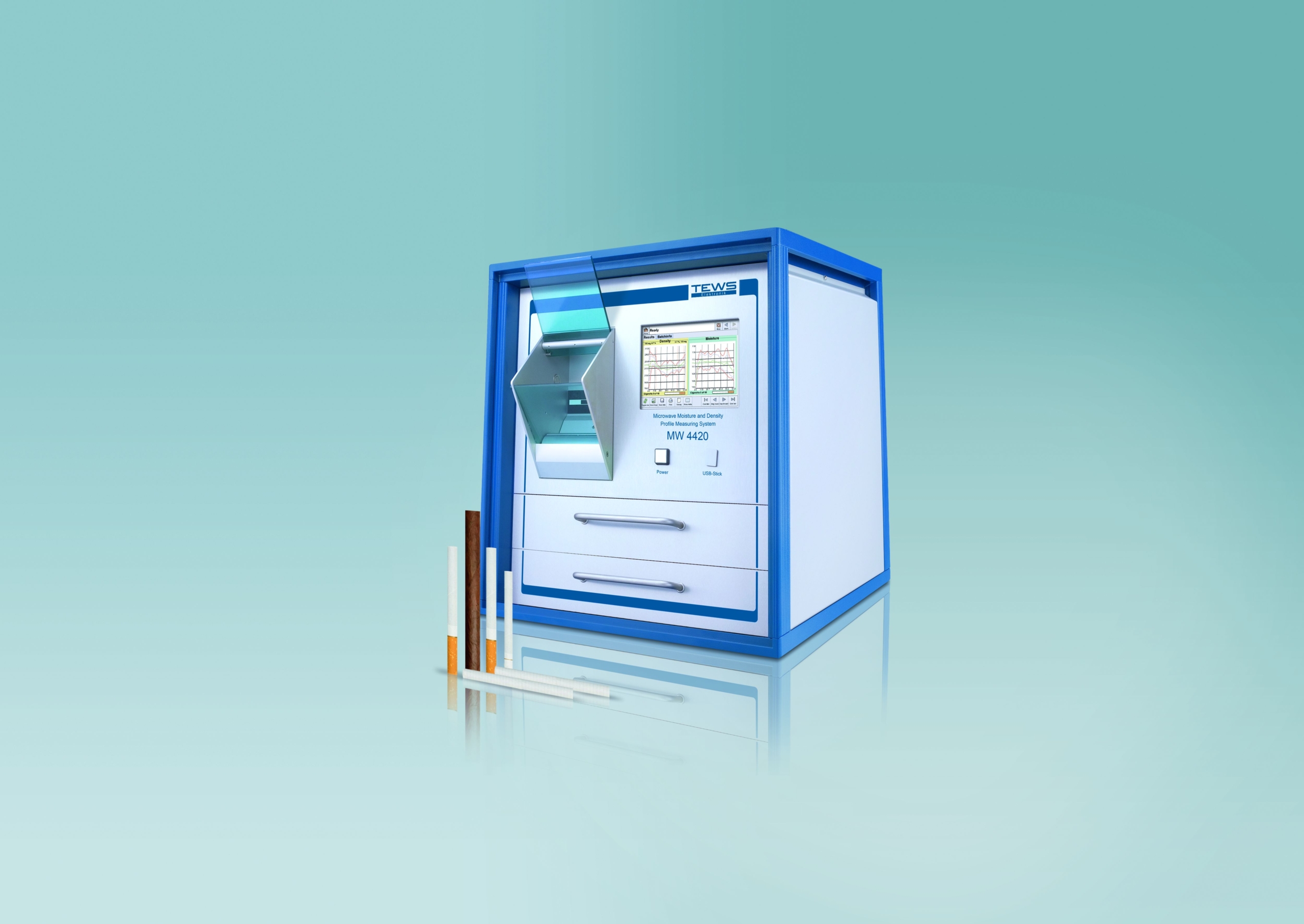

MW 4420
The Pioneering Inspection System for The Tobacco Industry.
The MW 4420 measuring station is suitable for quality control of various cigarettes, filters (e.g., segmented, charcoal, or with capsules), as well as foreign bodies (NTRM).
MEASUREMENT PERFORMANCE
- Fast, accurate, and precise moisture and density results with up to 20 cigarettes or filter rods per minute.
- Calibration as a long-term stable tool minimizing the need for frequent setups or recalibrations.
- Precisely measure and monitor critical parameters in tobacco and cigarette production, including:
- Individual tobacco moisture in cigarettes.
- Individual cigarette weight.
- Cigarette density profile to prevent loose ends.
- Cigarette moisture profile.
- Cutting position detection to ensure accurate cut.
- Position and composition of flavored filter capsules.
- Carbon content in carbon filters.
OPERATION
- Non-destructive testing preserves the integrity of your samples.
- Processes batch analysis of up to 100 cigarettes for reliable quality control.
- Graphic User Interface supports easy, recurrent measurements and in-depth data analysis, with configurable access levels for both experts and standard users.
- Set-up of the system by admin via integrated display.
- Intelligent mechatronic sorting system for automatic classification of good and bad cigarettes/filters.
CONNECTIVITY
- Article and setup information can be copied and transferred between instruments for streamlined integration.
- Automatic data backups ensure secure and reliable operations.
- Data export enables further processing in external programs, with multiple transfer options including USB, FTP, and
- Samba for easy integration with company networks or external PCs.
- Printer port enables instant documentation of results, for compliance and record-keeping.
USAGE AND DESIGN
- Compact, high-performance system built for reliability and efficiency in production environments.
- Modular adaptability allows easy integration into different production setups.
- Integrated 10.4” high-resolution color touchscreen with a self-explanatory menu.
Find the right device for your needs.
Contact our experts for personalized advice tailored to your needs.
